Integrated Microwave Anti-Pinch Sensor
Infrared Anti-Pinch Sensor
Safety Light Beam Sensor
Teeky’s electric sliding door opener delivers precise, reliable, and efficient automation for modern entrances. Designed for both single and double sliding doors, it supports doors up to 200kg (single) or 120kg per panel (double) and clear widths up to 3000mm. With adjustable opening and closing speeds, customizable hold-open times, and intuitive control modules, this electric sliding door opener provides smooth, quiet, and secure operation, making it ideal for homes, offices, hotels, and commercial spaces.
Exceptional Performance
-

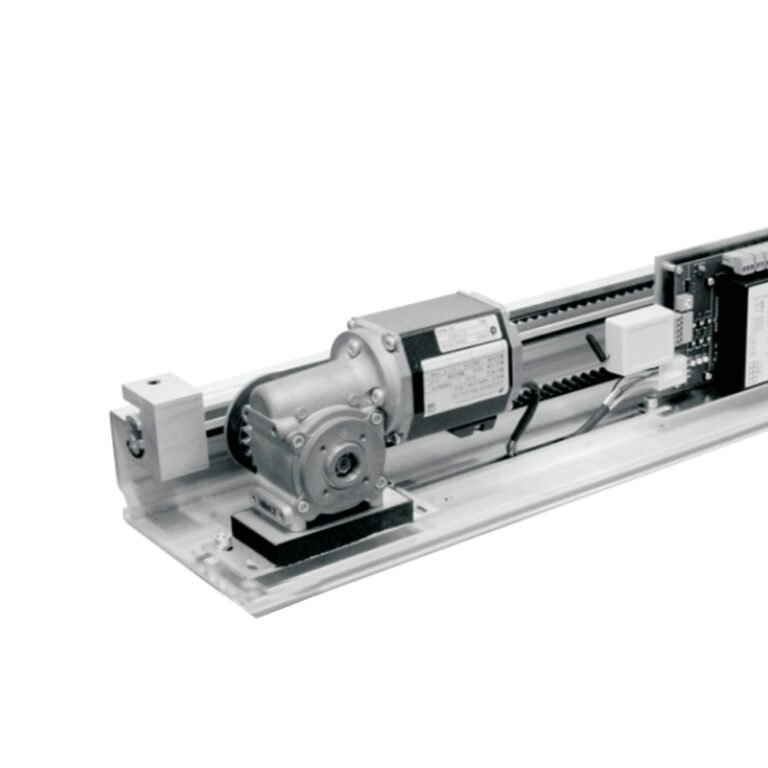

Compact DC Brushless Motor: Built-in powerful motor delivers high efficiency in a small footprint.
-
High-Efficiency Gear System: Optimized transmission ensures smooth operation with minimal noise.
-
Smart Microcomputer Control: Self-learning function guarantees safe, stable, and reliable performance.
-
Versatile Functionality: Designed to accommodate customized operational requirements.
European-Style Structural Design

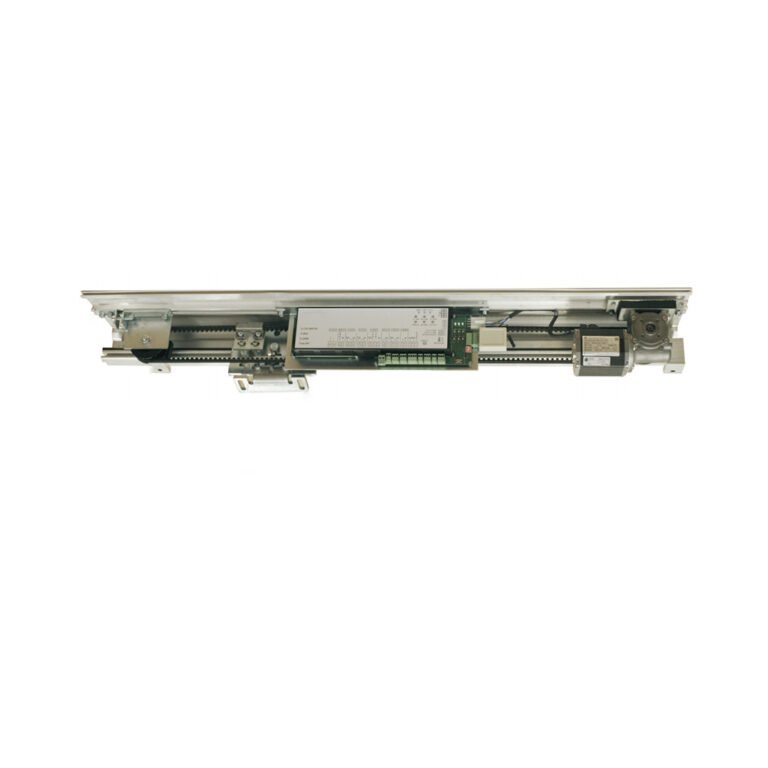

Drive unit, control module, and suspension system are all installed on the top rail, maximizing track space.
Large pulley system ensures silent and smooth operation.

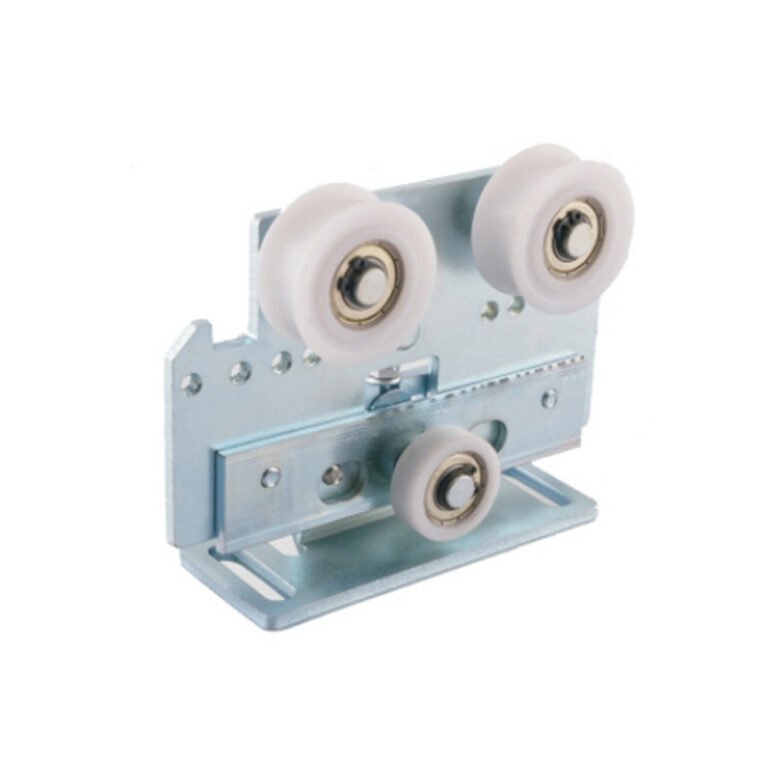

Aluminum alloy rail meets European thickness standards, paired with wear-resistant nylon pulleys and silent rubber strips for extended service life.
Intelligent Auto-Learning Function
The system automatically detects the door leaf’s weight and size.
Adjusts operational parameters for optimal performance.
Convenient & Reliable Features
-
Pre-Labeled Controller Module: Functional ports marked in Chinese allow fast and straightforward connections to remote controls, door locks, access control systems, fire alarms, sensors, and backup power.
-
Adjustable Settings: Control knobs enable easy customization of door opening/closing speed, door width, and hold-open duration.
Door Specifications
-
Single Sliding Door:
-
Clear opening width (LW): 700 – 3000mm
-
Maximum door weight: 1 × 200kg
-
-
Double Sliding Door:
-
Clear opening width (LW): 800 – 3000mm
-
Maximum door weight: 2 × 120kg
-
-
Clear Opening Height: 2100 – 3200mm (custom heights available)
Technical Parameters
-

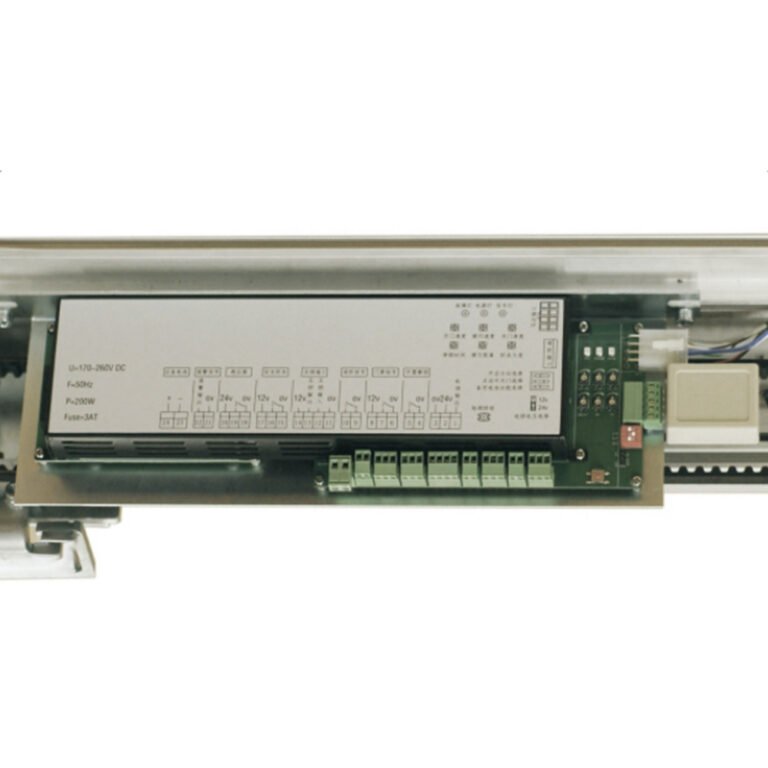

Controller Module: Features pre-labeled functional ports in Chinese for fast and easy connections to remote control, door lock, access control, fire alarm, sensors, and backup power.
-
Unit Dimensions: Height 135mm × Depth 160mm
-
Performance Specs:
-
Max opening/closing force: 45N
-
Adjustable opening speed: 15–70cm/s
-
Adjustable closing speed: 10–60cm/s
-
Door hold-open time: 0–8s
-
-
Power & Protection:
-
Power supply: 230V, 50/60Hz
-
Power consumption: 103W
-
Electrical protection rating: IP20
-
Operating temperature: -20°C to +60°C
-
-
Customizable Settings: Control knobs allow adjustment of door opening/closing speed, door width, and hold-open time.
