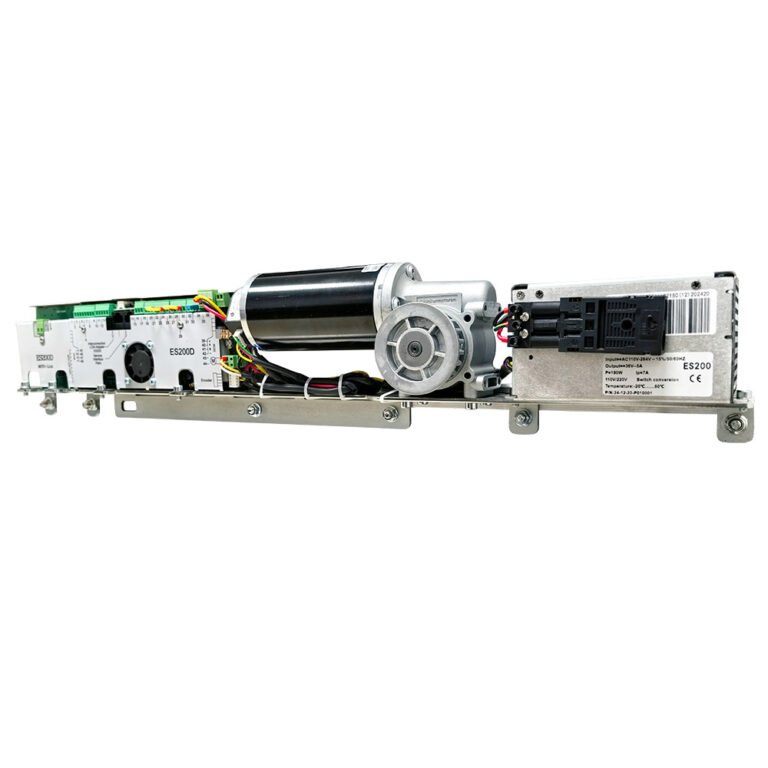

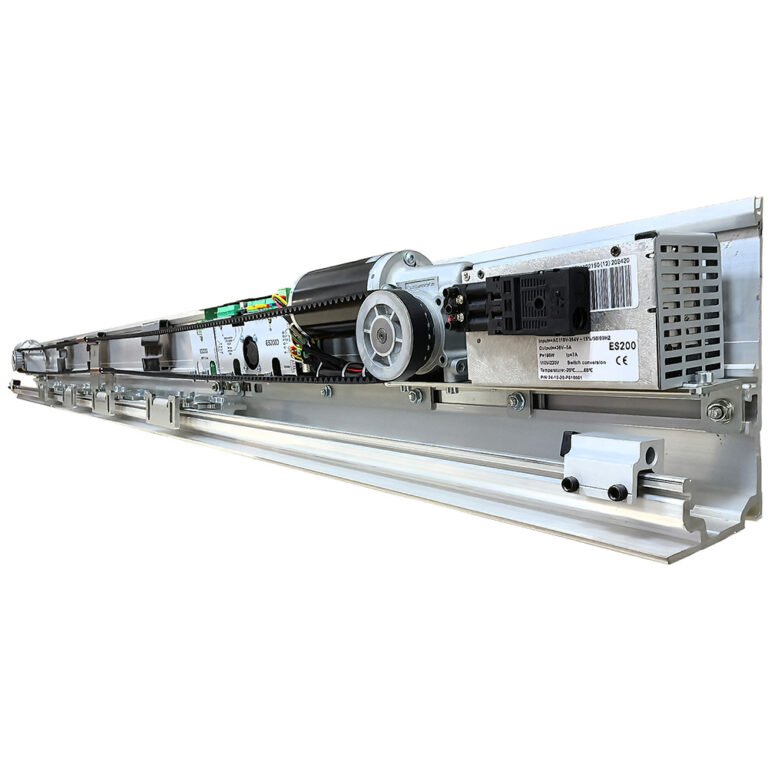

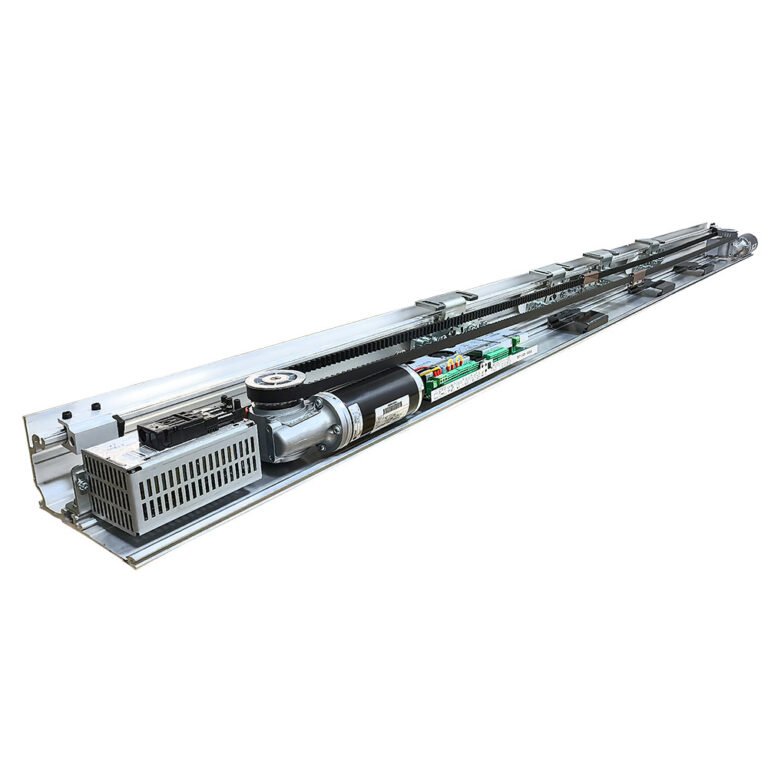

Enhanced Performance with Dual-Motor Support
The ES200D offers a significant performance upgrade over the standard ES200 by allowing dual-motor functionality, ideal for heavy-duty or high-traffic applications. With its modular design and seamless parameter compatibility with the ES200, upgrading is simple and efficient.
Technical Specifications
Single Sliding Door:
Opening width: 700 – 3000 mm
Max. door weight: 200 kg
Double Sliding Door:
Opening width: 900 – 3000 mm
Max. door weight: 160 kg × 2
With Dual Motor Expansion:
Max. door weight: Up to 600 kg
Installation Dimensions:
Operator height: 150 mm
Installation depth: 175 mm
Performance:
Opening speed: 10 – 75 cm/s (adjustable)
Closing speed: 10 – 50 cm/s (adjustable)
Open hold time: 0 – 30s (adjustable)
Closing force: 150 N

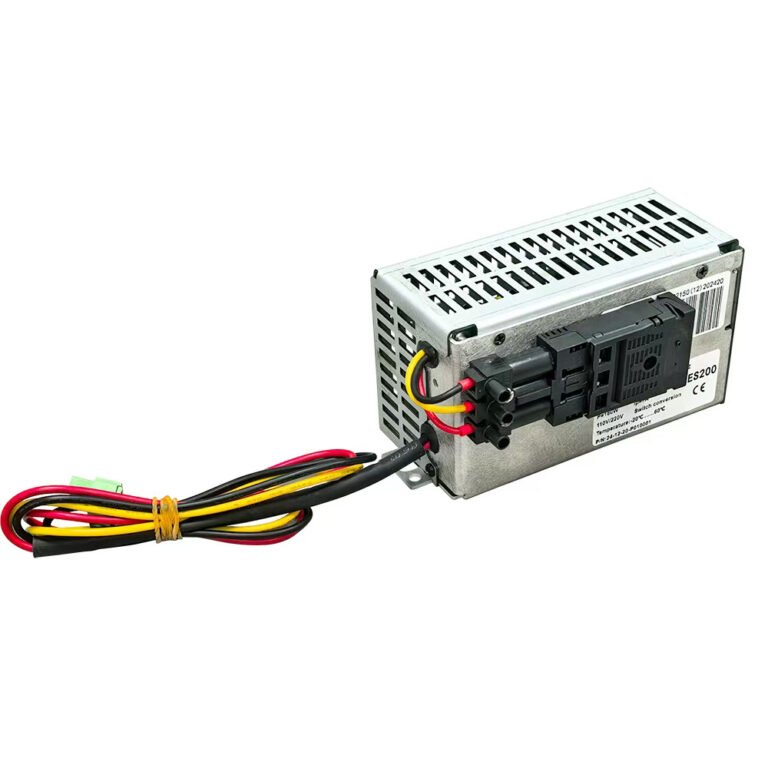

Power:
Input: AC 220V, 50/60 Hz
Power consumption: 180 W
Modular Functional Design
Basic Module (BM)
Includes standard operating modes:
Off / Automatic / Permanent Open
Partial Open / Exit Only / Night-Bank Switch
Compatible with:
Locking devices / Light barriers
Function Module (FM)
Enables extended features such as:
Pharmacy control
Triple-mode door status detection
Primary/secondary edge protection
Emergency closing / Bell contact
Airlock and synchronization control
Key Benefits
Heavy-Duty Capability: Dual-motor upgrade supports up to 600 kg load
Same Settings as ES200: Easy integration and installation
International Certifications: CE, RoHS, FCC, EN16005 compliance
Reliable German Engineering: Powered by the trusted Dunker motor
Flexible Operation: Wide range of programmable functions and settings
Ideal for Demanding Projects: Perfect for large doors and high-traffic areas
Application Scenarios
The ES200D is widely used in both commercial and industrial settings, where durability and performance are essential. Common applications include:
Office buildings and corporate entrances
Hospitals and healthcare facilities
Hotels and shopping malls
Airports and transportation hubs
Supermarkets and retail stores
Industrial facilities with heavy sliding doors
Cleanrooms and laboratories requiring secure access control
