Integrated Microwave Anti-Pinch Sensor
Infrared Anti-Pinch Sensor
Safety Light Beam Sensor
Reliable Performance & User-Friendly Operation

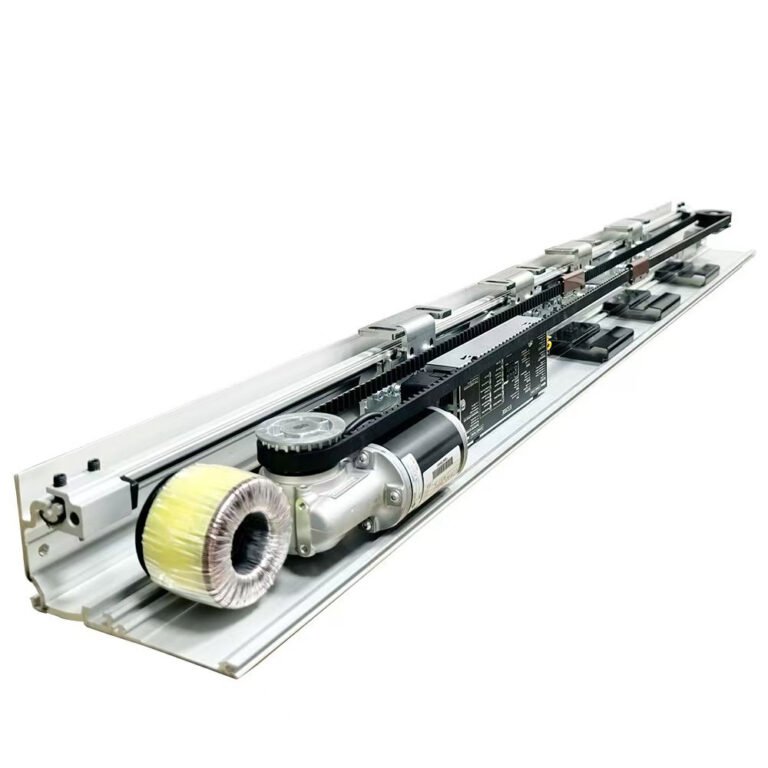

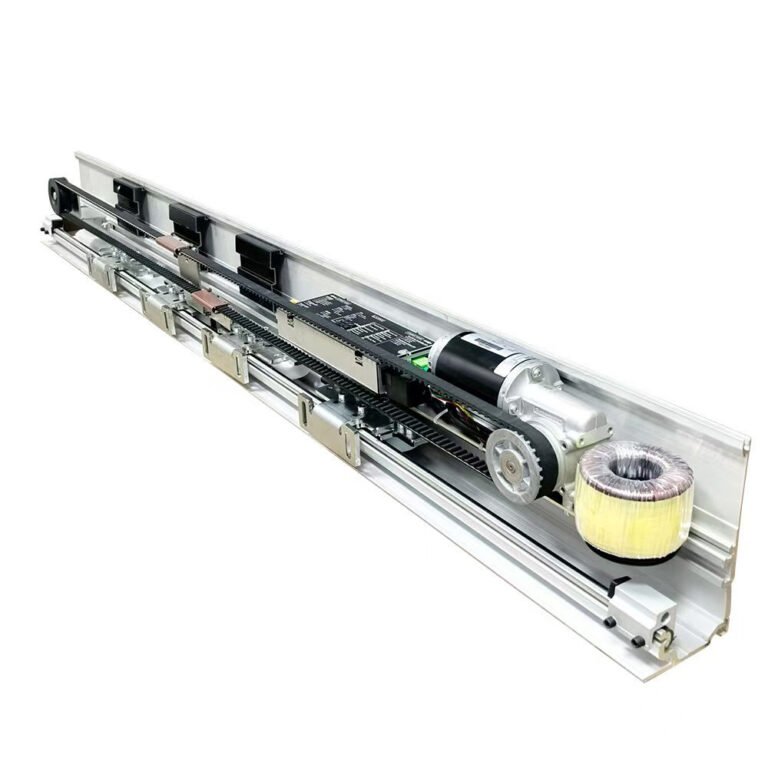

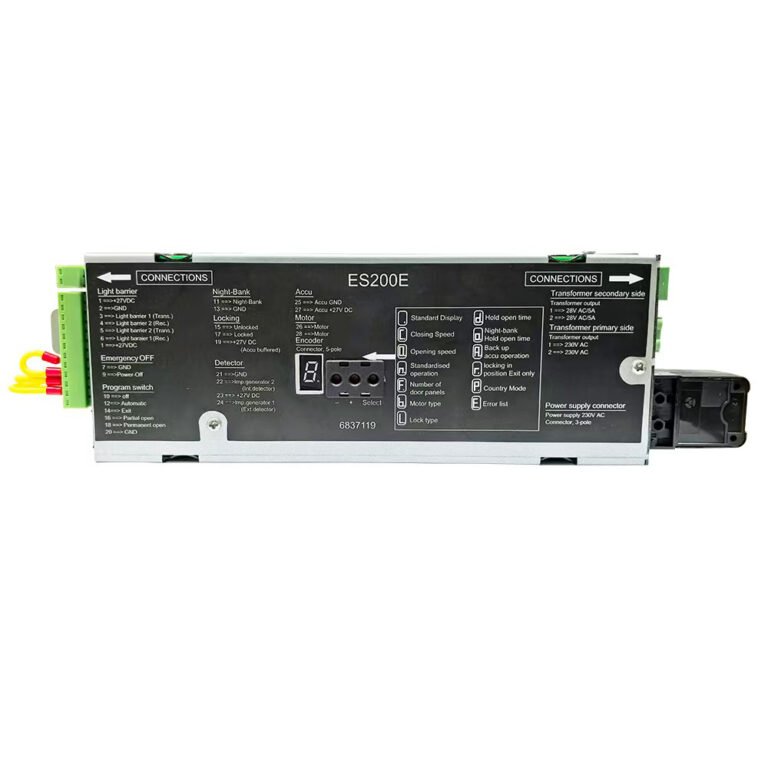

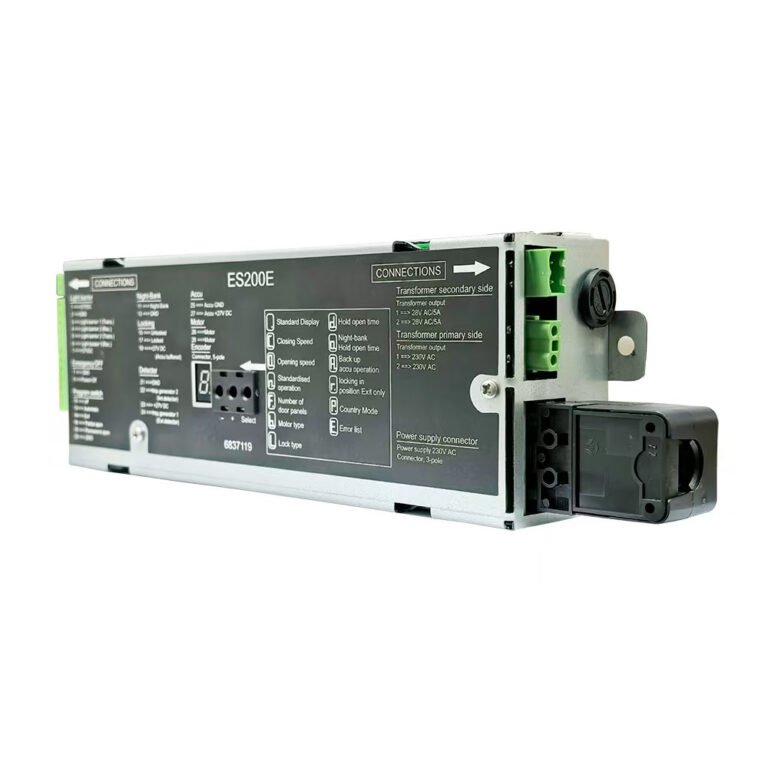

The ES200E allows easy parameter adjustments through integrated pushbuttons and a display, eliminating the need for separate programming tools. It is designed to work with all standard door frames and provides excellent operating characteristics with minimal maintenance.
Technical Specifications
Opening Style: Single / Double sliding door
Door Weight Capacity: Single door up to 200 kg; Double doors up to 100 kg each
Passage Width: 700 – 3000 mm
Passage Height: 2100 – 3200 mm
Opening Speed: 10 – 50 cm/s
Closing Speed: 10 – 40 cm/s
Hold-Open Time: 0.5 – 30s (adjustable)
Track Length: Standard 4m (Customizable: 2 – 6m)
Motor: Dunker motor GR63*25
Advantages
High-Quality Performance: Utilizes the original Dunker motor for superior reliability.
Long Service Life: Rigorously tested for over five years to ensure durability.
Noiseless Operation: A specialized track rail pad reduces noise and protects the wheels.
Self-Learning Function: Ensures stable and adaptive operation.
Enhanced Safety: The door panels reverse softly when encountering obstacles.
Application Scenarios
Commercial buildings
Hospitals & medical facilities
Office entrances
High-traffic public areas
Shopping malls
