Components
| NO. | Picture | Name | Quantity |
| 1 |  |
Gate Opener |
2 |
| 2 |  |
Control Box |
1 |
| 3 |  |
Remote Control |
2 |
| 4 |  |

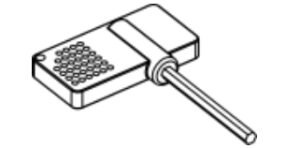

Manual release key |
2 |
| 5 |  |
Iron blocker L |
2 |
| 6 |  |

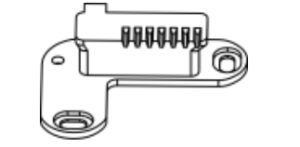

Iron blocker R |
2 |
| 7 |  |
Expansion Bolt Ф8x12mm |
12 |
| 8 |  |

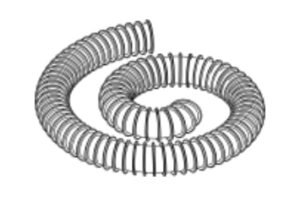

Corrugated Pipe Ф16x500mm |
2 |
| 9 |  |
Rubber Case Ф18mm |
4 |
Technical Specifications
| Model | PK600GL |
| Power Supply | 220V/50Hz; 110V/60Hz |
| Motor Power | 40W x 2 |
| Gate Moving Speed | 15s per 90° |
| Max. Single-leaf Weight | 600kg |
| Max. Single-leaf Length | 4m |
| Remote Control Distance | ≥30m |
| Remote Control Mode | Single/Four-button mode |
| Working Noise | ≤58dB |
| Duty Cycle |
S2 30 Min |
| Remote Control Storage | Up to 32 remotes |
| Remote Frequency | 433.92 MHz |
| Working Temperature | -40℃ ~ +55℃ |
| Package Weight | 17.5kg |
